“HIDDEN THRESHOLD” MULTI-SLIDE & POCKET DOOR SYSTEM

Series 3050

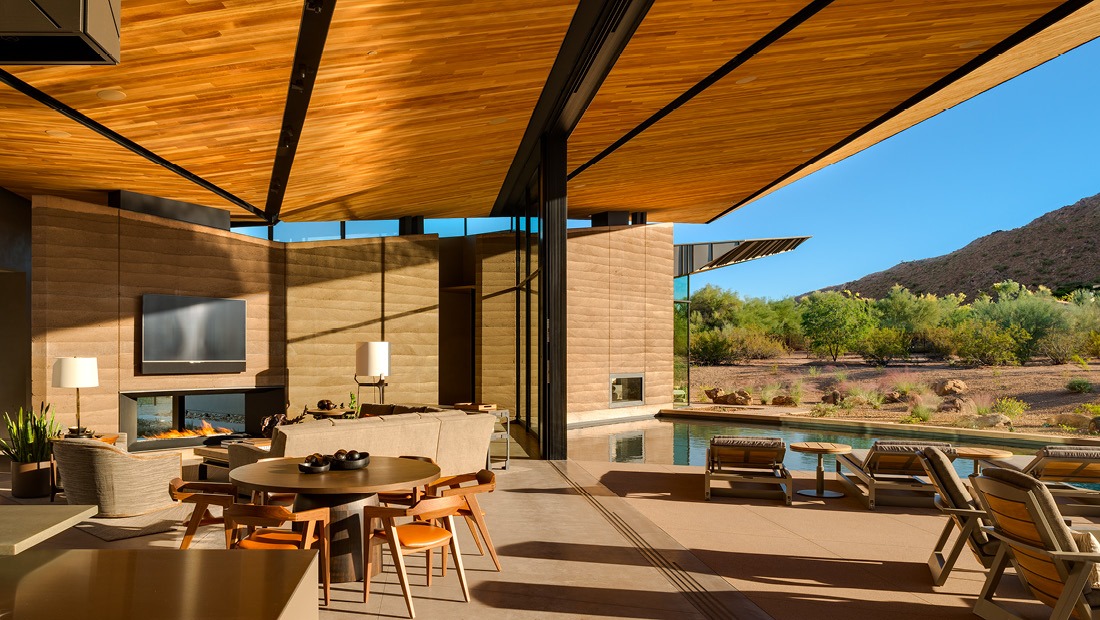

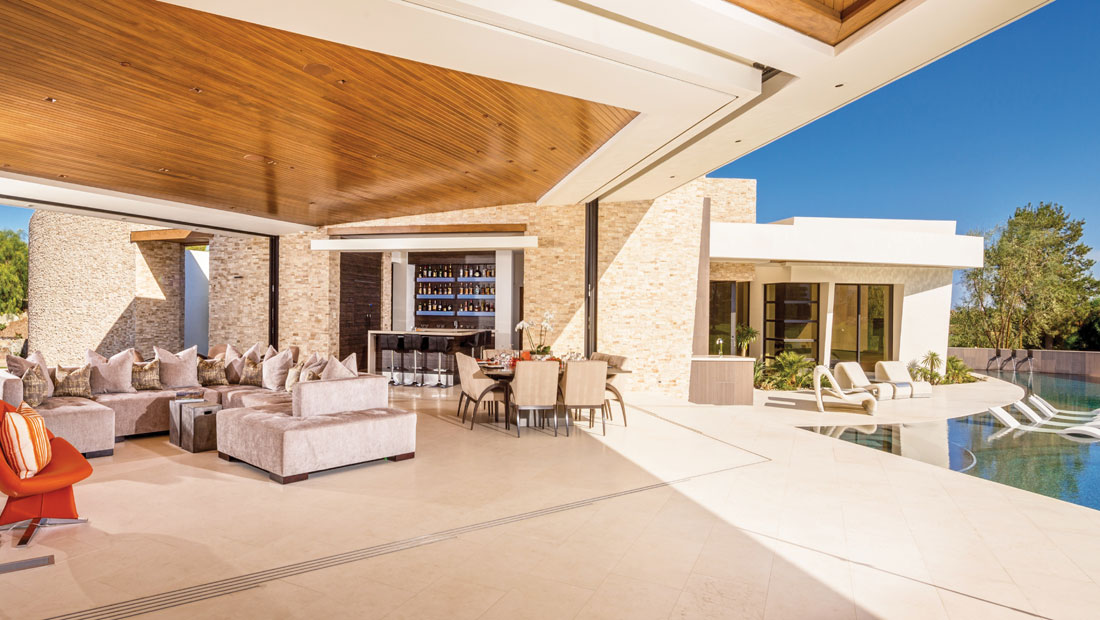

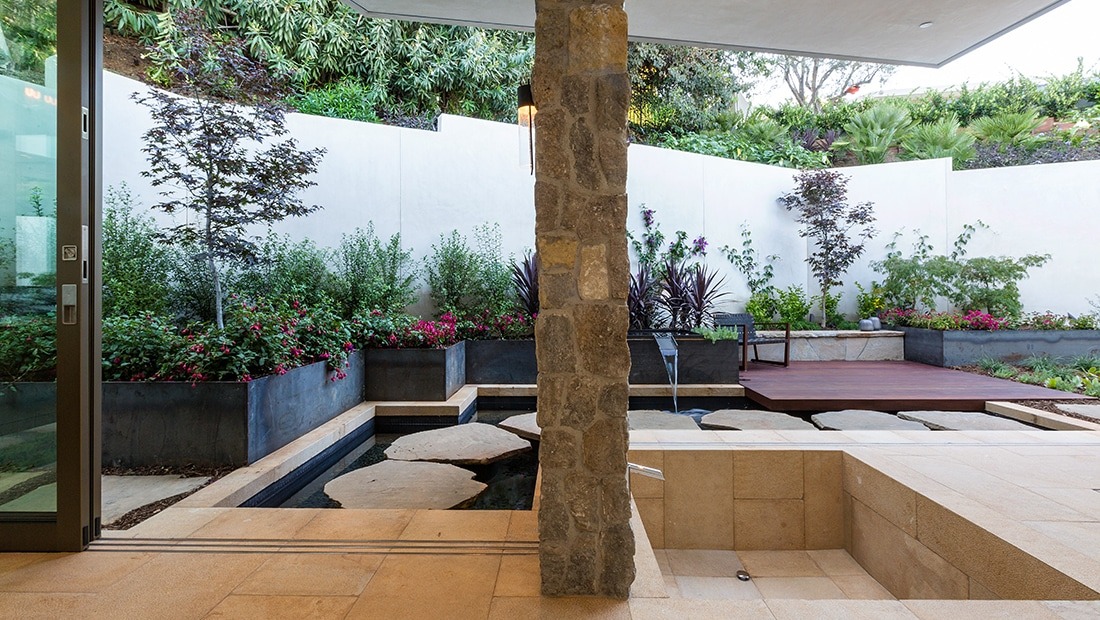

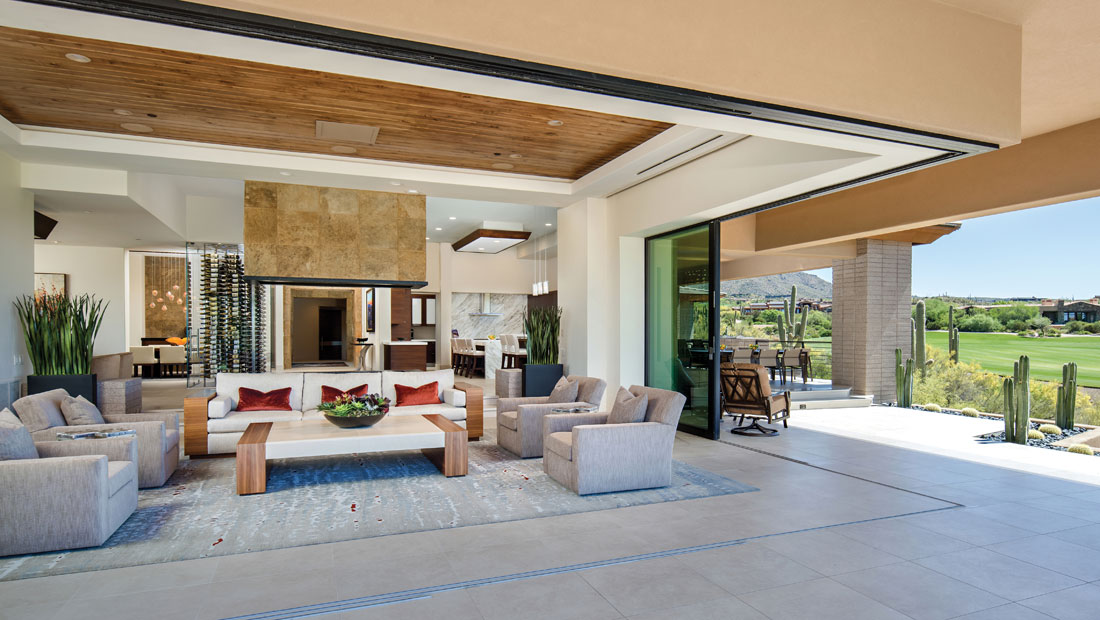

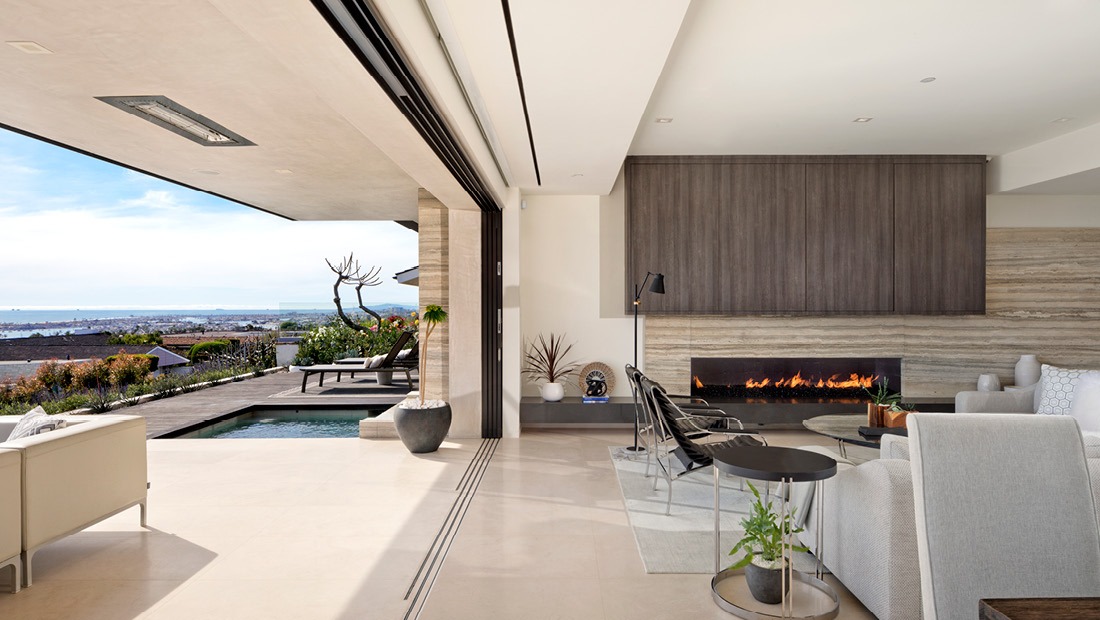

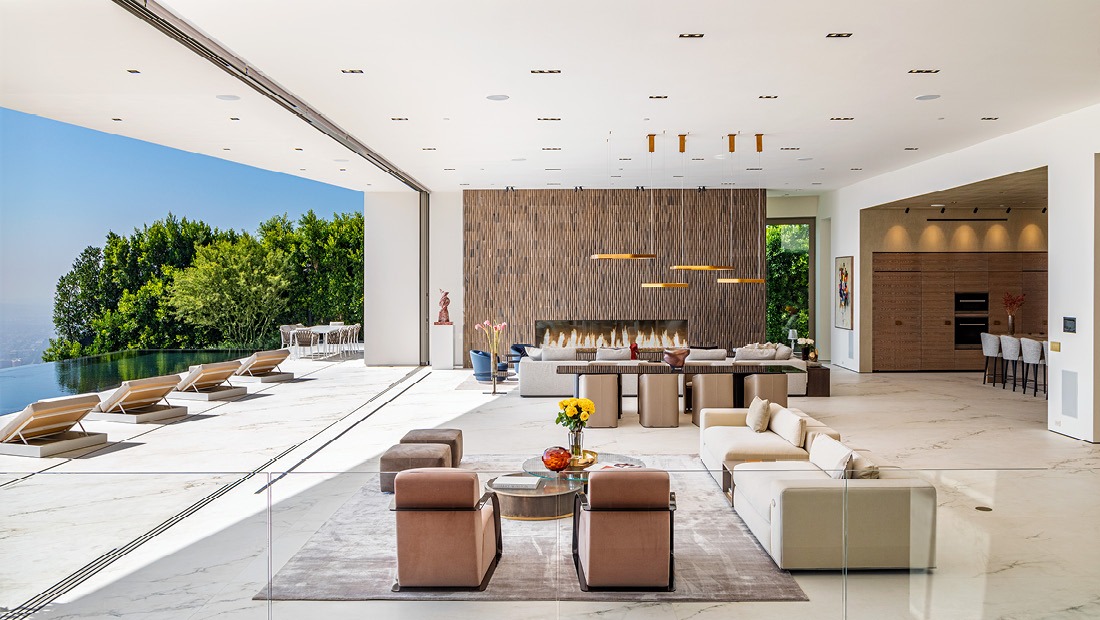

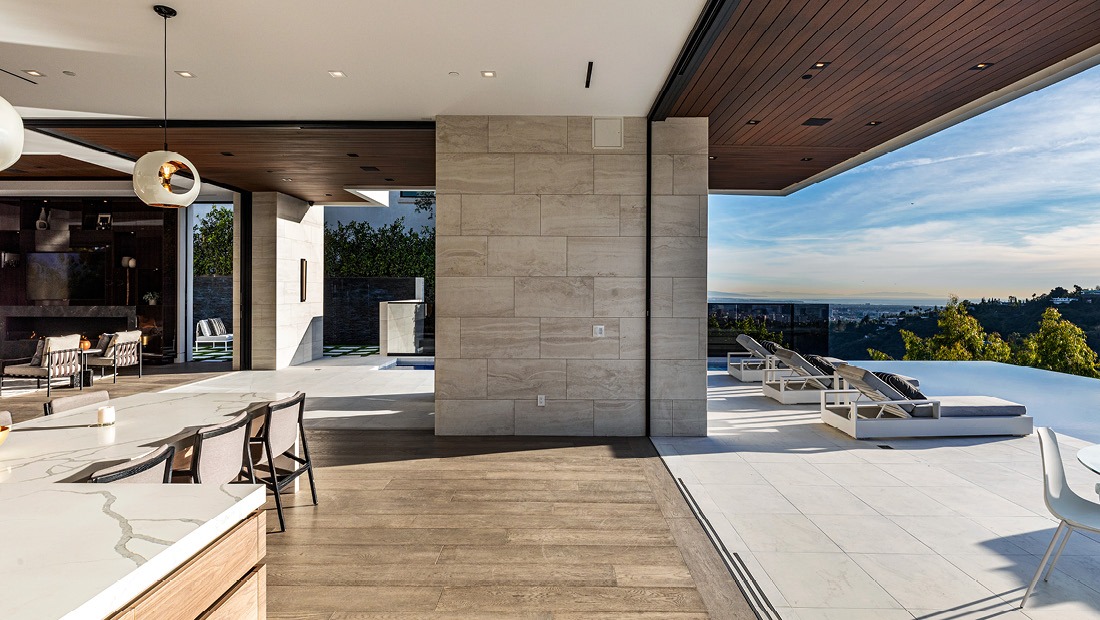

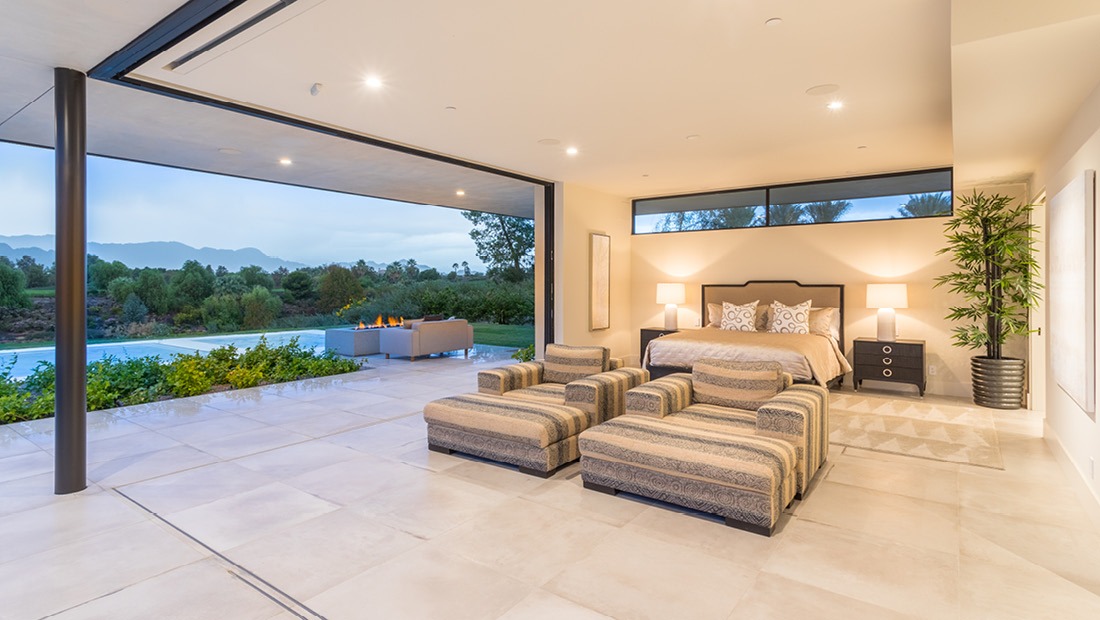

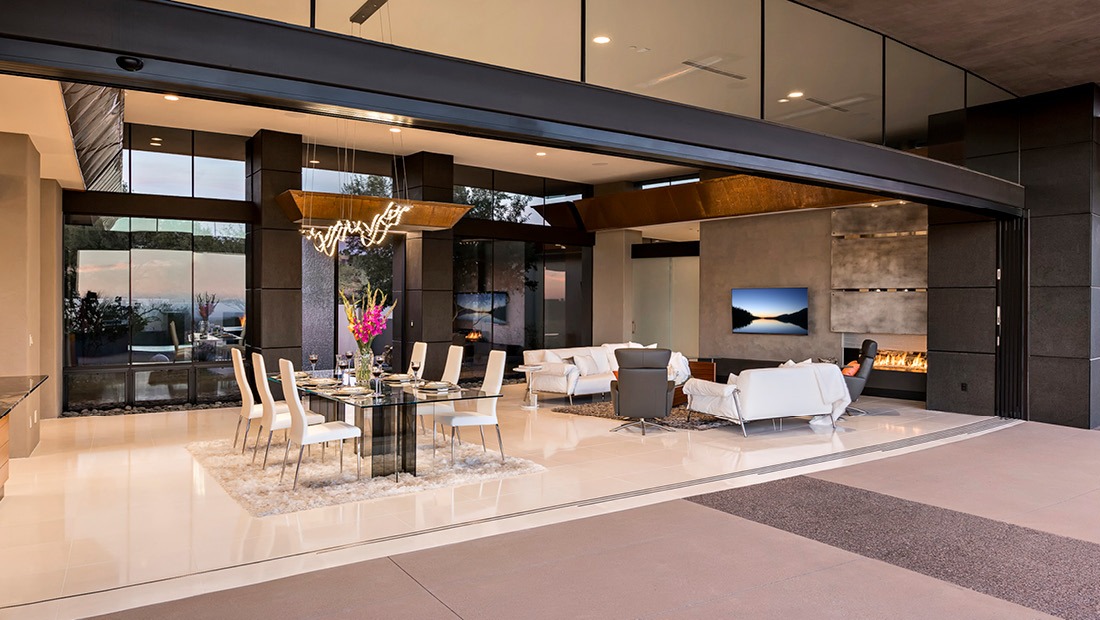

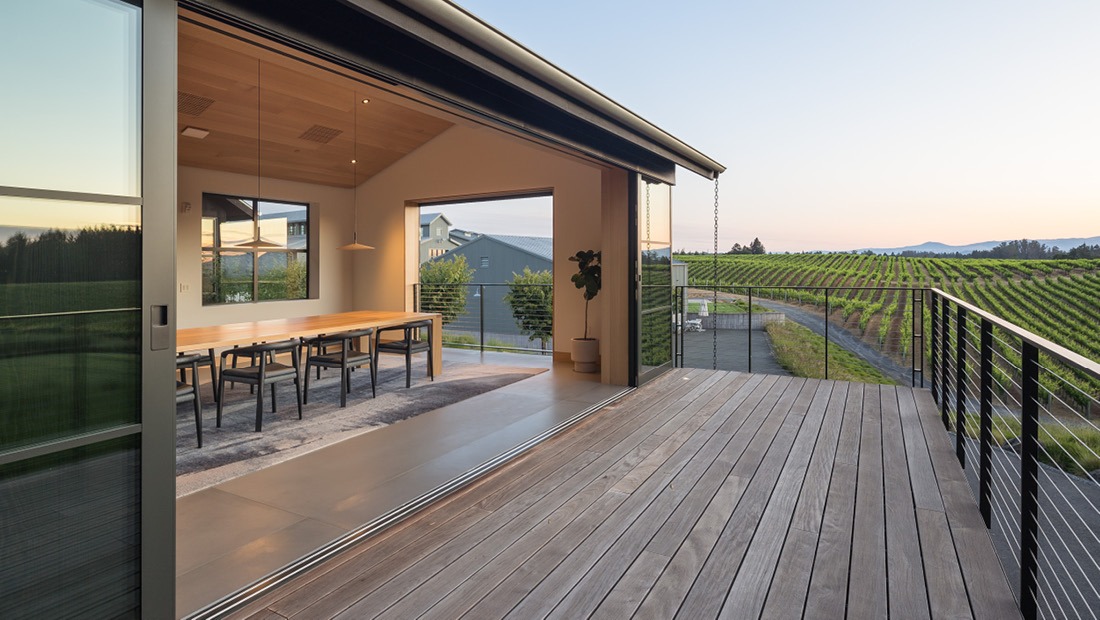

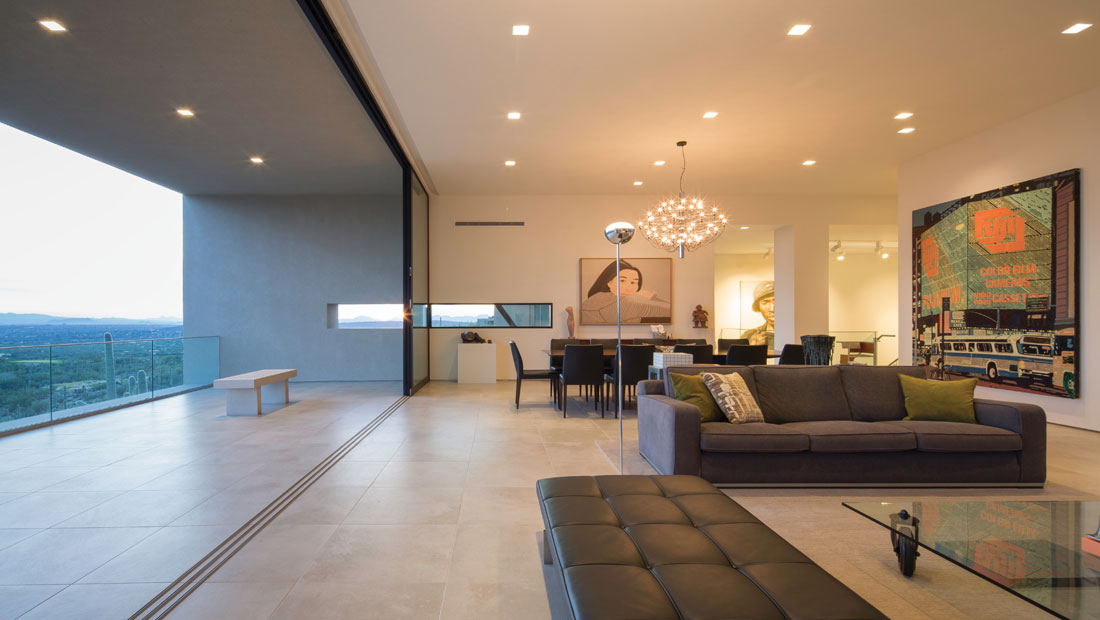

The 3050 offers a sleek multi-slide & pocketing door with a unique “Hidden Track” that creates an almost invisible transition from the interior to the exterior while offering modest energy and air performance. Originally designed for indoor use, the 3050 now has Fleetwood’s renowned Arche-Duct drainage system available as an option for exterior applications.

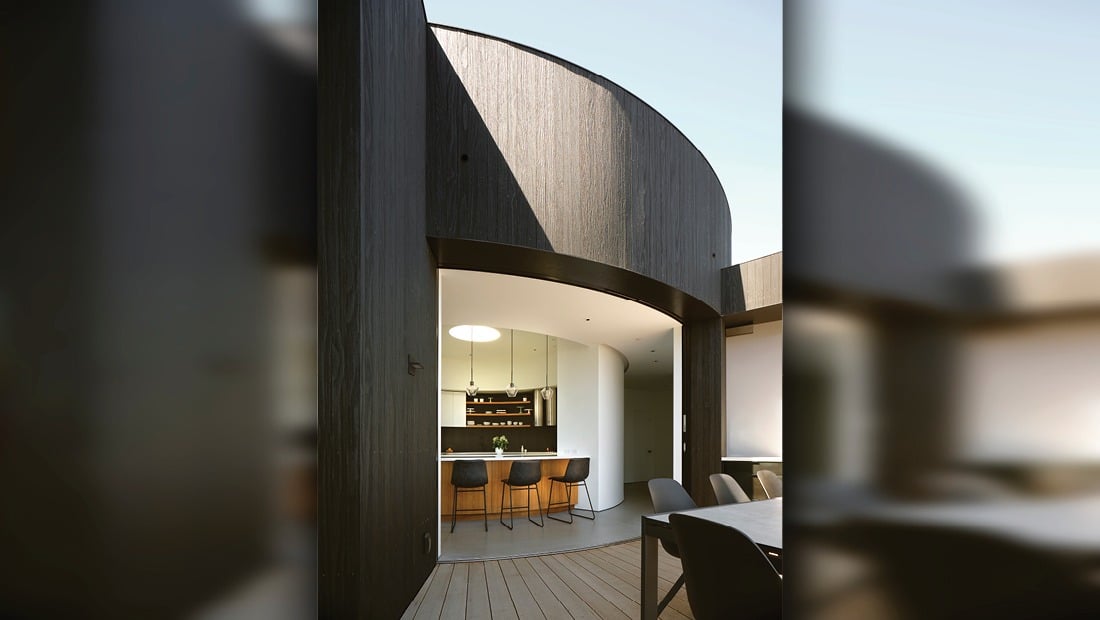

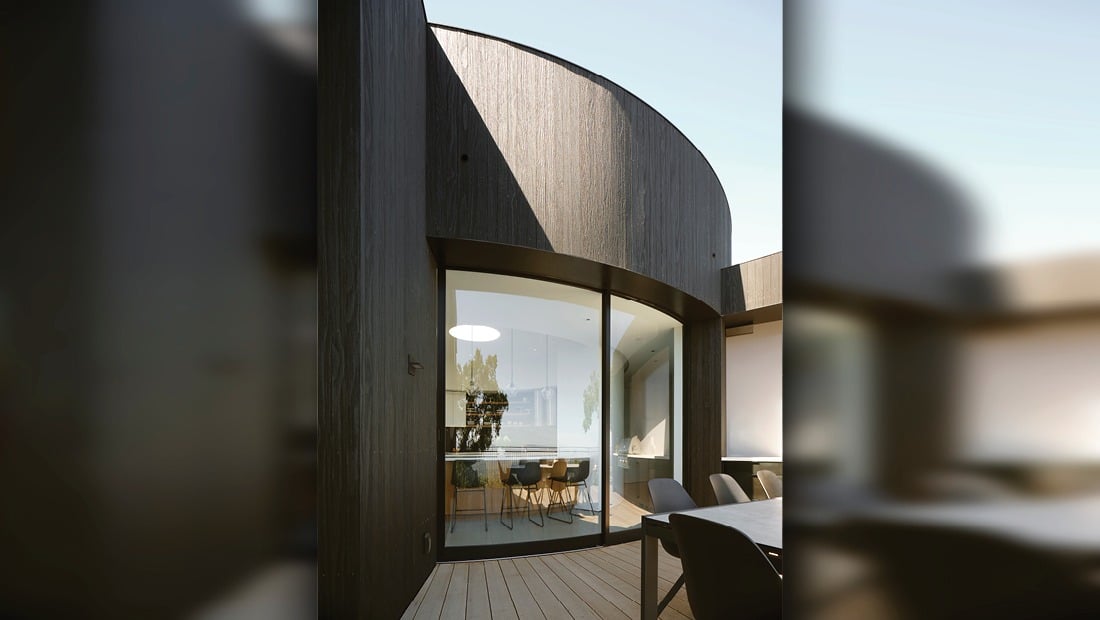

The 3050 stands alone with the option for curved sliding glass walls. Our state-of-the-art Delta 60 CNC-I roll bender offers curved doors with a radius as tight as 12’ and unlimited widths.

The panel profiles are the same as our exterior rated sliding doors for a unified design throughout the home.

For higher performing weather and energy needs, consider the 4070-T, 3070, or 3070-T doors.

Product Highlights

Superior Characteristics

Thermal Conductivity:

Aluminum is thermally stable in that it does not swell or shrink when the temperature or humidity levels change. Very little energy is lost through the frame material but in the case of wood and vinyl, energy is lost through the frame and vent seams after years of expansion and contraction.

Low Maintenance:

While every lifestyle product requires upkeep, Fleetwood products are resilient in even the extreme environments and come with a Lifetime Warranty.

Customizing Operation:

With the versatility and unlimited configuration options, you can create hundreds of custom systems, including but not limited to, multi-slide, stacking, pocketing, meeting, curved, corner, multi-corner and barn doors.

Enhancing Design

Slim Lines:

Fleetwood’s sliding door interlockers are among the slimmest on the market! Methodical engineering and aluminum thickness allow slender lines without compromising structural integrity.

Crisp, Linear Shapes:

Fleetwood’s design focus is the opposite of mass production. A prime example is the sharp edges and crisp lines created by a balance of hand tooling, automation and dedicated machining.

Huge Sizes:

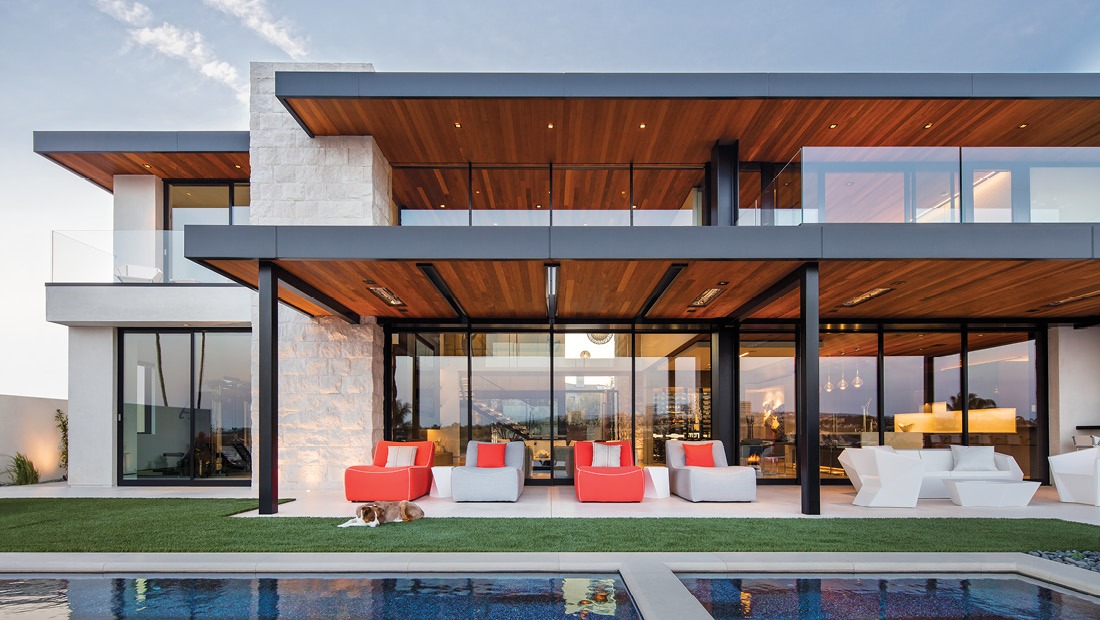

Strength and beauty are demonstrated by Fleetwood’s unique ability to produce doors with massive pieces of glass. For example, it is common for a 30’ x 12’ opening to have just 4 vertical lines.

Robust Screen:

So many other doors are provided with a flimsy screen frame and cheap mesh. Our standard screen is the best sliding screen door made, period! Why? The screen utilizes the same frame and hardware as the glass panels and the highest quality mesh on the market (Ultra Vue).

The “Little” Things

Patented, USA-Made Hardware:

In 2005, Fleetwood began a two-year design project to create a better door latching system. The hardware market choices failed to meet Fleetwood’s quality level so we designed our own. The net result is the Archetype locking system.

Fit & Finish:

We have gone to great lengths to make the appearance of our doors exceptional. Fleetwood includes cosmetic items that other manufacturers do not, such as: Pocket Closers, Jamb Fillers, Head Fillers, and Sill Fillers. These come standard on every custom sliding door by Fleetwood.

Swiss, Precision Bearings:

The Archetype roller comes standard with authentic precision bearings. Many others claim precision as a buzzword, but only Fleetwood partners with a Switzerland based manufacturer that specializes in precision bearings.

Stainless Track Inserts:

Fleetwood’s track is a solid aluminum base that receives a heavy gauge stainless steel insert that can be easily replaced. Cheaper designs offer a metal cap applied to an aluminum runner or plastic strut.

Energy, Noise & Security

High Efficiency Glass:

Modern glazing from Fleetwood coupled with increasingly efficient insulation techniques allows a minimalist design with huge glass that does not compromise energy consumption.

Security Benefits:

Fleetwood endeavors to make products better instead of cheaper, resulting in specialty products that other manufacturers should not attempt. High-security laminated glass (like your car windshield) coupled with robust Fleetwood framing can withstand severe impact.

Noise Control:

Fleetwood chooses to offer a wide range of options instead of limiting features to increase profit and simplify production. Sound dampening upgrades to glass and products are available without affecting the budget or design.

Fire/Heat Resistance:

Steel products are designed and rated to resist fire damage, but these products are limited in function and can be costly. While not rated, Fleetwood aluminum products offer great performance and style and actually help maintain wall integrity during a fire. Typical residential windows (wood or vinyl) add to the flame whereas extruded aluminum retains its form at over 1000 °F.

Product FEATURES

Standard Features

Stock Anodized Finish: Black (Class 1) or Clear (Class 1)
1″ Insulated Glass with Dark Bronze Spacer
6063 T-6 Extruded Aluminum

1-15/16″ (per track) Deep Equal Leg (Block) Perimeter Frame
Stainless Steel Assembly Screws
Jamb Filler(s)
Head Filler(s)
1″ Height “Hidden Track” Threshold with Stainless Steel Track

Authentic Precision Bearing Stainless Steel Tandem Archetype Rollers (1-7/8″ Diameter)
Equal Sized Glass
Archetype Stainless Steel Hardware
Archetype 2nd Stainless Steel Multi-Point Latch (96″ Height +)
Actuator Height 46″
Adjustable Stainless Steel Strike
Stainless Steel Dust Box
Wrap Around Glazing

Optional Features

(See CAD Details for more options)

Finish:

- Kynar 70% Paint (50% for dark colors, ex. Black)
- Class 1 Custom Anodize (Light Bronze & Medium Bronze)
Glazing: 1/4″ & 9/16″
Wide or Archetype Fixed Stile

Unequal Sized Glass (Flush Stack)
High-Performance Interlockers
High-Performance Meeting Stiles
Heavy Duty Screen Door with UltraVue Mesh (Phifer.com)

Bent Frame & Glass Panels
Sightline Extenders: 2.5″, & 3.5″

Black Painted Archetype Hardware
Archetype Actuator Only
Archetype Lever
Exterior or Interior Keyed Lock
Bottom Rail Used as Top Rail
Actuator Height: 54″, 36″ & 24″
Steel Look SDL

Hardware

Hardware Page

Configurations

Unlimited Multi-Slide, Curved, Pocket & Corners

Max Panel Width & Height

Max Panel Width: 120″

Max Frame Height: 216″

(Max width & height are not necessarily available in combination)

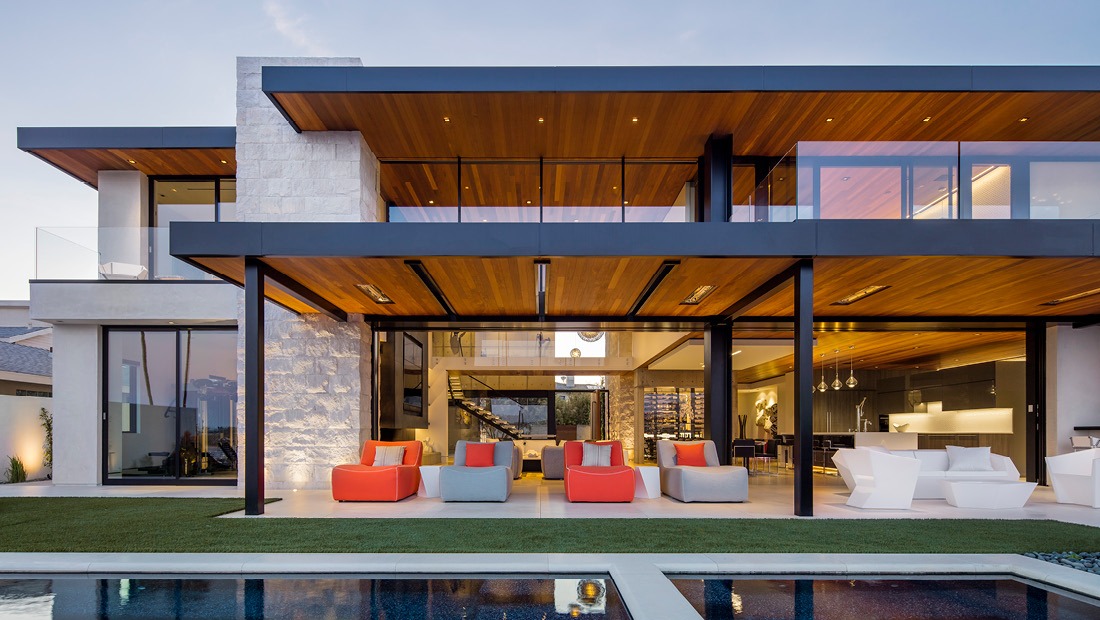

VIEW SLIDER

Technical Resources

Architectural Details

Architectural Detail Drawings

3050-001__MultiSlide (PDF) (DWG)
3050-002__MultiSlide_Screens_&_Hidden_Track (PDF) (DWG)
3050-003__MultiSlide_Pocket (PDF) (DWG)
3050-004__MultiSlide_Pocket_w_Screens_&_Hidden_Track (PDF) (DWG)
3050-005__MultiSlide_Corner_Door (PDF) (DWG)
3050-006__MultiSlide_Corner_w_Screens_&_Hidden_Track (PDF) (DWG)
3050-007__MultiSlide_Curved_Door (PDF) (DWG)
3050-008__Options_&_Upgrades (PDF) (DWG)
3050-013__Options_&_Upgrades2 (PDF) (DWG)
3050-009__Options_Archetype (PDF) (DWG)
3050-010__Options_Archetype_Narrow (PDF) (DWG)
3050-011__OIXO_OXIO (PDF) (DWG)
3050-012__MultiSlide_Corner_Door_Archetype (PDF) (DWG)
3050-013__Options_&_Upgrades2 (PDF) (DWG)
3050-014_Archeduct (PDF) (DWG)

Anchor Location Worksheet (PDF)

Revit Families (BIM)

Revit Families

Door-Slider-Fleetwood-3050-OX (RFA)
Door-Slider-Fleetwood-3050-OXX (RFA)
Door-Slider-Fleetwood-3050-XXXX (RFA)

Assembly Drawings

Installation Instructions

The Series 3050 is a highly engineered product. Fleetwood encourages only trained professionals perform the installation.

Energy Test Results

I. Standard Glass Table

Standard Glass Table

II. Additional Glass Testing:

NFRC Series 3050 (PDF)

Simulated Performance Alternative Reports are available upon request.

Spacers

A1 = Aluminum Spacer
SS-D = Stainless Steel Spacer
A2/TS-D = Warm Edge Spacers
ZF = Super Spacer

Default U-Values

Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.

Sound Test Results

This door was designed for a luxury residence, which seldom requests sound test data. For comparative analysis only, we provide a Series 3000-T report.

Concept Drawings

Concept/Sample Drawings

3070_3050-C02 (PONY WALL) (PDF) (DWG)
3050 Concept Wall Conditions_R & D_Option 1 (PDF) (DWG)
3050 Concept Wall Conditions_R & D_Option 2 (PDF) (DWG)

Weather Test Results

AAMA/WDMA/NAMI/HVHZ/ASTM

All testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.

*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.

Current Test Reports:

071724+AAMA+3050_XXX_R20_139x120_T24-078: (PDF)

Proprietary Archetype Hardware

Archetype Rolling System (ARS)

Dissatisfaction with overseas hardware and our endless pursuit towards “making it better” led us into a partnership with a Swiss bearing manufacturer. As a result of this union, our sliding doors come with rollers assembled in the USA, equipped with authentic Swiss bearings.

Note: This door is equipped with high performance, Swiss bearing rollers. Operate with care to avoid injury to person or damage to property.

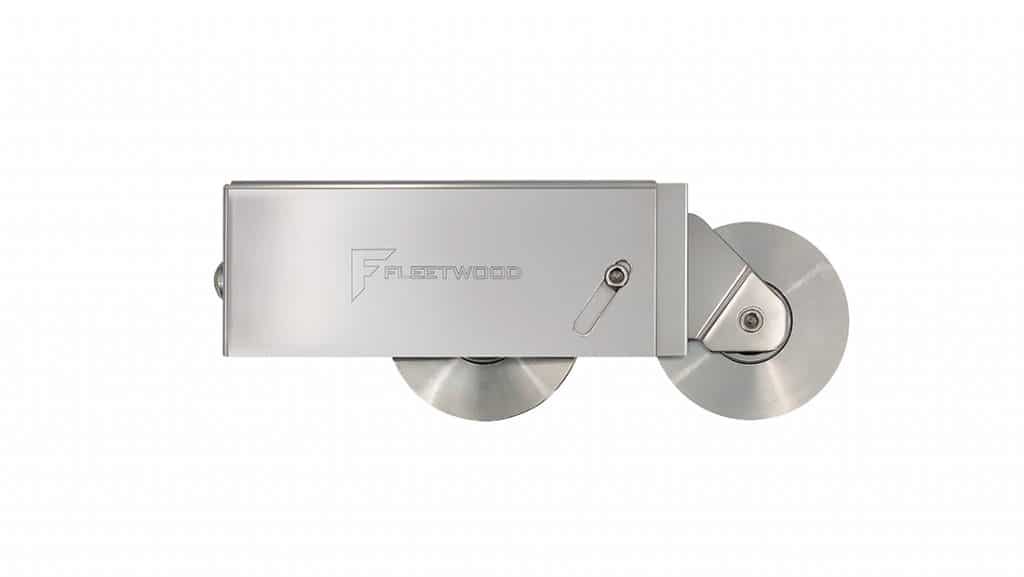

A3 Roller

History & Technical Information

Archetype Locking System (ALH)

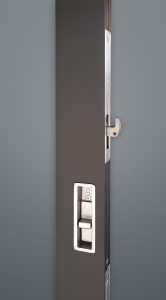

Frustration with the hardware industry’s “best quality” inspired us to design luxury home quality hardware. The result is our Archetype line of American made locking hardware. (Patent # US 8,186,189 B2)

Technical Information

Archetype Hardware (ALH)
